Precast Concrete Feed Bunks

View-con precast concrete large J cattle feed bunk with deep trough and raised walls, designed to reduce feed waste.

Cattle / Large J Bunks

Large J cattle feed bunks: 39" outside width, 18" front wall, 28" back wall, deep trough to cut waste. 8 ft sections, 50 MPa concrete, rebar reinforced. ~2200 lbs each.

Key Features

Overall width: 39″ outside to outside
Front wall: 18″ tall | Back wall: 28″ tall
Deep feed area reduces waste
8 ft sections – easy to move and install
Rebar reinforced, 50 MPa concrete
Ideal for beef and feedlot operations

View Dimensions

Key Features

22″ outside width
16″ × 8″ inside feed area
Narrow design perfect for sheep, goats, and calves

8 ft sections, 50 MPa concrete, rebar reinforced

View Dimensions

Sheep & Goat Feed Bunks

Space-saving narrower construction precast sheep and goat feed bunks: 22" outside width, 16" × 8" inside feed area. 8 ft sections, 50 MPa concrete, rebar reinforced. 1700 lbs. Ideal for sheep, goats, and calves.

Extra-wide precast concrete H feed bunk with deep trough, designed for large herds and compatibility with head-locking system

H Feed Bunks

Extra-wide H precast feed bunks: 60" outside width, 12" deep feed area. Optimized for double-sided feeding. 8 ft sections, 50 MPa concrete, rebar reinforced. 2800 lbs.

Key Features

60″ outside width
12″ deep inside feed area
Designed for double-sided feeding

8 ft sections, 50 MPa concrete, rebar reinforced

View Dimensions

Key Features

Designed to sit flush against structural walls
Creates a full 36″ feeding area without added width
Same 50 MPa strength and rebar reinforcement

View-con precast concrete faceless feed bunk for wall or curb installation, creating a 36-inch feeding area while saving space in barns.

Faceless Feed Bunks

Faceless precast feed bunks for wall or curb installs: Creates 36" feeding area without added width. 8 ft sections, 50 MPa concrete, rebar reinforced. Perfect for renovations and structural curbs.

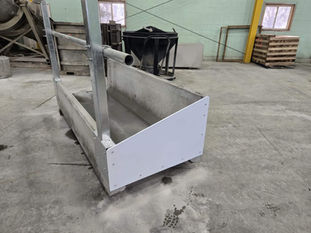

Headrail System

Enhance your precast feed bunks with View-Con's durable Headrail System, crafted from all-galvanized steel for long-lasting corrosion resistance in livestock environments.
